How to hide sensitive info in temporal ctl or web ui?

Community Support
,
1

Hi Temporal Team,

I am trying to signup/onboard new user and the input passes through temporal, but I do not want to show sensitive info in temporal ctl or web ui.

PFB a sample where I want to hide sensitive info like password and username.

What should be the best practice to handle such use-case ?
Does temporal provide some way to handle it ?

image1317Ă—449 22.6 KB

1 Like
2

The Temporal way would be either not passing sensitive information directly through the workflow or encrypting it before submitting to the service.
Both Java and Go SDK use the DataConverter interface to serialize and deserialize workflow and activity function arguments and results. We recommend creating your own version of DataConverter that encrypts payloads that have to be hidden using whatever library and certificate management solution your company prefers.

4 Likes
3

Thanks @maxim I have been exploring the way to encrypt the sensitive info before passing it to temporal.
I built a working solution using Jackson Crypto (https://github.com/meltmedia/jackson-crypto) and java samples of temporal.

Here find below the github sample app based on java samples:

4

Have you looked into implementing the DataConverter interface to support encryption? This way the workflow and activity code don’t need to deal with encryption directly.

1 Like
5

Thanks @maxim for encouraging to use a better practice of custom DataConverter instead of making workflow and activities to deal with encryption.

Now I have improved the sample to use

Custom DataConverter (via WorkflowClient options) -> which uses Custom JacksonJsonPayloadConverter (this is where encryption code resides).

Now in temporal web “input” and “result” both show in encrypted JSON format while passing through. Whereas in my application I’m still getting original POJO for utilization. This exactly what I wanted.

Please have a glance at below code if in case I’m doing it wrong or doing too much.

6

Looks good to me. One option would be extending the JacksonJsonPayloadConverter and use the constructor that takes ObjectMapper instead of completely rewriting it.

7

Yes Refactored it now.

8

Hi @Maxim,

So now after enabling encryption in my application using custom data converter, started facing a new issue where signup workflow starts failing and gets retried again and again.

I am suspecting it is due to some delay introduced bcoz of encrypt / decrypt logic, and hence temporal data conversion is getting timed out. What do you think ?

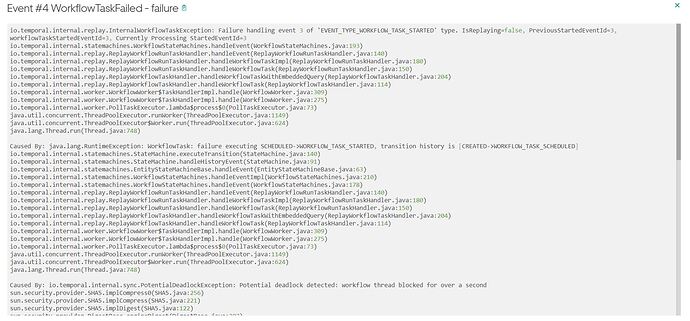

Complete stack trace is available below:

exception part 1
exception part 11880Ă—876 288 KB
exception part 2
exception part 21867Ă—892 263 KB
exception part 3
exception part 31857Ă—272 81.2 KB

9

Does it make some RPC calls? Is decrypting a single payload indeed takes over a second?

10

Hi @maxim,

  1. No It does not make any RPC call.

For second question’s answer did jmeter perfomance testing on jackson-json-crypto library was surprised to learn that it indeed was taking more than a second under stress of just 15 threads.

Found the issue in pre-configured iterationCount for below java method, which was very high.

Then configured it to a little moderate iteration count.

PBEKeySpec (Java Platform SE 8 ) (oracle.com)

After that even 100 threads also gives a performance of under 1 second.

Deployed the changes in server, hopefully this resolves the bottleneck.

2 Likes
