Hi,
As per old temporal ui version, we were able to navigate to the child workflow run execution via the hyperlink(i.e value that is shown beside the workflowExecution.runId attribute in ChildWorkflowExecutionStarted state transition) as shown below :
But unable to navigate in similar fashion in latest temporal web ui :
Any plans to incorporate the same feature in latest web ui as well?
Hi, what version of temporalio/ui image are you using?

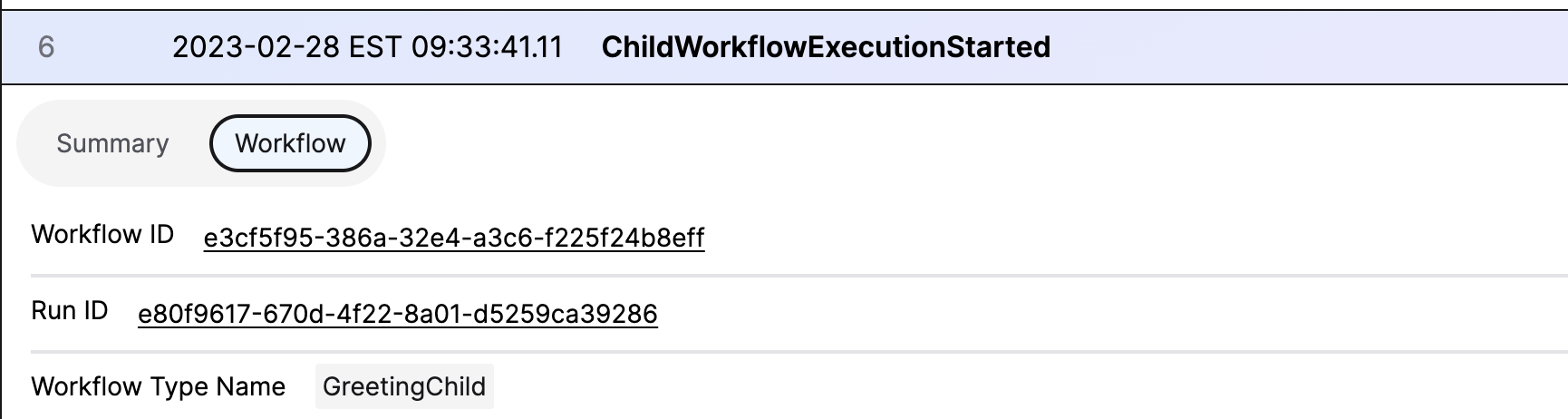

Trying with 2.10.3 and see the link available in ChildWorkflowExecutionStarted event:
Maybe you have the “latest” cached. Try setting version explicitly:
image: temporalio/ui:2.10.0
I am trying to deploy using below docker compose file :
version: "3.5"
services:
temporal:
container_name: temporal
image: temporalio/auto-setup:1.20.0
networks:
- temporal-network
ports:
- 7233:7233
volumes:
- ./dynamicconfig:/etc/temporal/config/dynamicconfig
environment:
- DB=postgresql
- DB_PORT=5433
- DBNAME=temporal
- VISIBILITY_DBNAME=temporal_visibility
- POSTGRES_USER=yugabyte
- POSTGRES_PWD=yugabyte
- POSTGRES_SEEDS=host.docker.internal
- DYNAMIC_CONFIG_FILE_PATH=config/dynamicconfig/development.yaml
temporal-admin-tools:
container_name: temporal-admin-tools
image: temporalio/admin-tools:1.20.0
depends_on:
- temporal
networks:
- temporal-network
stdin_open: true
tty: true
environment:
- TEMPORAL_CLI_ADDRESS=temporal:7233
temporal-ui:
container_name: temporal-ui
image: temporalio/ui:2.10.3
depends_on:
- temporal
environment:
- TEMPORAL_ADDRESS=temporal:7233
networks:
- temporal-network
ports:
- 8080:8080
temporal-web:
container_name: temporal-web
image: temporalio/web
networks:
- temporal-network
ports:
- 8088:8088
depends_on:
- temporal
environment:
- TEMPORAL_GRPC_ENDPOINT=temporal:7233
- TEMPORAL_PERMIT_WRITE_API=true
networks:
temporal-network:
driver: bridge
name: temporal-network
Facing issue as below :
[36mtemporal |e[0m /home/builder/temporal/temporal/fx.go:159:
e[36mtemporal |e[0m sql schema version compatibility check failed: version mismatch for keyspace/database: "temporal". Expected version: 1.9 cannot be greater than Actual version: 1.7
e[36mtemporal |e[0m Unable to create server. Error: could not build arguments for function "go.uber.org/fx".(*App).constructCustomLogger.func2 (/go/pkg/mod/go.uber.org/fx@v1.18.2/app.go:414): failed to build fxevent.Logger: could not build arguments for function "go.temporal.io/server/temporal".glob..func8 (/home/builder/temporal/temporal/fx.go:1013): failed to build log.Logger: received non-nil error from function "go.temporal.io/server/temporal".ServerOptionsProvider (/home/builder/temporal/temporal/fx.go:159): sql schema version compatibility check failed: version mismatch for keyspace/database: "temporal". Expected version: 1.9 cannot be greater than Actual version: 1.7.
e[32mtemporal-ui |e[0m {"time":"2023-03-01T06:38:56.275888213Z","id":"","remote_ip":"192.168.240.1","host":"localhost:8080","method":"GET","uri":"/_app/version.json","user_agent":"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/110.0.0.0 Safari/537.36","status":200,"error":"","latency":330667,"latency_human":"330.667µs","bytes_in":0,"bytes_out":27}
e[36mtemporal exited with code 1
Can you please help on the same.
Is your postgres container running?
“Version mismatch” errors typically mean the db is not initialized. If you can share your postgres service compose definition too I can try to reproduce.
As attached in above docker-compose, I am pointing to a yugabyte database that is deployed as part of different docker compose file.
I can see the temporal database created with below details :
But unable to see temporal_visibility database.
Detailed logs as below :
[36mtemporal |e[0m 2023-03-02T05:00:07.768Z e[35mDEBUGe[0m Schema updated from 1.5 to 1.6 {"logging-call-at": "updatetask.go:143"}
e[36mtemporal |e[0m 2023-03-02T05:00:07.768Z e[35mDEBUGe[0m ---- Executing updates for version 1.7 ---- {"logging-call-at": "updatetask.go:151"}
e[36mtemporal |e[0m 2023-03-02T05:00:07.768Z e[35mDEBUGe[0m CREATE TABLE cluster_metadata_info ( metadata_partition INTEGER NOT NULL, cluster_name VARCHAR(255) NOT NULL, data BYTEA NOT NULL, data_encoding VARCHAR(16) NOT NULL, version BIGINT NOT NULL, PRIMARY KEY(metadata_partition, cluster_name) ); {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.237Z e[35mDEBUGe[0m ALTER TABLE current_executions ALTER COLUMN start_version SET DEFAULT 0; {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.294Z e[35mDEBUGe[0m CREATE TABLE tiered_storage_tasks( shard_id INTEGER NOT NULL, task_id BIGINT NOT NULL, data BYTEA NOT NULL, data_encoding VARCHAR(16) NOT NULL, PRIMARY KEY (shard_id, task_id) ); {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.834Z e[35mDEBUGe[0m ---- Done ---- {"logging-call-at": "updatetask.go:159"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.862Z e[35mDEBUGe[0m Schema updated from 1.6 to 1.7 {"logging-call-at": "updatetask.go:143"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.862Z e[35mDEBUGe[0m ---- Executing updates for version 1.8 ---- {"logging-call-at": "updatetask.go:151"}
e[36mtemporal |e[0m 2023-03-02T05:00:08.862Z e[35mDEBUGe[0m DROP TABLE tiered_storage_tasks; {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:09.169Z e[35mDEBUGe[0m ALTER TABLE current_executions ALTER COLUMN create_request_id TYPE VARCHAR(255); {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:09.244Z e[35mDEBUGe[0m ALTER TABLE signals_requested_sets ALTER COLUMN signal_id TYPE VARCHAR(255); {"logging-call-at": "updatetask.go:153"}
e[36mtemporal |e[0m 2023-03-02T05:00:10.902Z e[31mERRORe[0m Unable to update SQL schema. {"error": "error executing statement:pq: could not open relation with OID 55700", "logging-call-at": "handler.go:78"}
e[36mtemporal |e[0m 2023/03/02 05:00:11 Loading config; env=docker,zone=,configDir=config
e[36mtemporal |e[0m 2023/03/02 05:00:11 Loading config files=[config/docker.yaml]
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.147Z","msg":"Build info.","git-time":"2023-02-17T00:53:28.000Z","git-revision":"b313b7f586415f98dde332c6b4d1801e48b187a4","git-modified":false,"go-arch":"arm64","go-os":"linux","go-version":"go1.19.5","cgo-enabled":false,"server-version":"1.20.0","debug-mode":false,"logging-call-at":"main.go:143"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: system.advancedvisibilitywritingmode oldValue: nil newValue: { constraints: {} value: off }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: frontend.historymgrnumconns oldValue: nil newValue: { constraints: {} value: 10 }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: history.historymgrnumconns oldValue: nil newValue: { constraints: {} value: 50 }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: system.forcesearchattributescacherefreshonread oldValue: nil newValue: { constraints: {} value: true }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: history.defaultworkflowretrypolicy oldValue: nil newValue: { constraints: {} value: map[BackoffCoefficient:2 InitialIntervalInSeconds:1 MaximumAttempts:0 MaximumIntervalCoefficient:100] }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: history.persistencemaxqps oldValue: nil newValue: { constraints: {} value: 3000 }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: history.defaultactivityretrypolicy oldValue: nil newValue: { constraints: {} value: map[BackoffCoefficient:2 InitialIntervalInSeconds:1 MaximumAttempts:0 MaximumIntervalCoefficient:100] }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: frontend.persistencemaxqps oldValue: nil newValue: { constraints: {} value: 3000 }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: frontend.throttledlogrps oldValue: nil newValue: { constraints: {} value: 20 }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"dynamic config changed for the key: frontend.enableclientversioncheck oldValue: nil newValue: { constraints: {} value: true }","logging-call-at":"file_based_client.go:275"}
e[36mtemporal |e[0m {"level":"info","ts":"2023-03-02T05:00:11.165Z","msg":"Updated dynamic config","logging-call-at":"file_based_client.go:195"}
e[36mtemporal |e[0m {"level":"warn","ts":"2023-03-02T05:00:11.165Z","msg":"Not using any authorizer and flag `--allow-no-auth` not detected. Future versions will require using the flag `--allow-no-auth` if you do not want to set an authorizer.","logging-call-at":"main.go:173"}
e[36mtemporal |e[0m [Fx] PROVIDE *pprof.PProfInitializerImpl <= go.temporal.io/server/common/pprof.NewInitializer()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServerImpl <= go.temporal.io/server/temporal.NewServerFxImpl()
e[36mtemporal |e[0m [Fx] PROVIDE temporal.Server <= go.temporal.io/server/temporal.glob..func9()
e[36mtemporal |e[0m [Fx] SUPPLY []temporal.ServerOption
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.serverOptions <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE chan interface {} <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *config.Config <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *config.PProf <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE log.Config <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE resource.ServiceNames <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE resource.NamespaceLogger <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE resolver.ServiceResolver <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE client.AbstractDataStoreFactory <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE searchattribute.Mapper <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE []grpc.UnaryServerInterceptor <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE authorization.Authorizer <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE authorization.ClaimMapper <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE authorization.JWTAudienceMapper <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE log.Logger <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE client.FactoryProvider <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE dynamicconfig.Client <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *dynamicconfig.Collection <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE encryption.TLSConfigProvider <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *client.Config <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE client.Client <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE metrics.Handler <= go.temporal.io/server/temporal.ServerOptionsProvider()
e[36mtemporal |e[0m [Fx] PROVIDE []trace.SpanExporter <= go.temporal.io/server/temporal.glob..func2()
e[36mtemporal |e[0m [Fx] PROVIDE client.FactoryProviderFn <= go.temporal.io/server/temporal.PersistenceFactoryProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServicesMetadata[group = "services"] <= go.temporal.io/server/temporal.HistoryServiceProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServicesMetadata[group = "services"] <= go.temporal.io/server/temporal.MatchingServiceProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServicesMetadata[group = "services"] <= go.temporal.io/server/temporal.FrontendServiceProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServicesMetadata[group = "services"] <= go.temporal.io/server/temporal.InternalFrontendServiceProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *temporal.ServicesMetadata[group = "services"] <= go.temporal.io/server/temporal.WorkerServiceProvider()
e[36mtemporal |e[0m [Fx] PROVIDE *cluster.Config <= go.temporal.io/server/temporal.ApplyClusterMetadataConfigProvider()
e[36mtemporal |e[0m [Fx] PROVIDE config.Persistence <= go.temporal.io/server/temporal.ApplyClusterMetadataConfigProvider()
e[36mtemporal |e[0m [Fx] PROVIDE fx.Lifecycle <= go.uber.org/fx.New.func1()
e[36mtemporal |e[0m [Fx] PROVIDE fx.Shutdowner <= go.uber.org/fx.(*App).shutdowner-fm()
e[36mtemporal |e[0m [Fx] PROVIDE fx.DotGraph <= go.uber.org/fx.(*App).dotGraph-fm()
e[36mtemporal |e[0m [Fx] ERROR Failed to initialize custom logger: could not build arguments for function "go.uber.org/fx".(*App).constructCustomLogger.func2
e[36mtemporal |e[0m /go/pkg/mod/go.uber.org/fx@v1.18.2/app.go:414:
e[36mtemporal |e[0m failed to build fxevent.Logger:
e[36mtemporal |e[0m could not build arguments for function "go.temporal.io/server/temporal".glob..func8
e[36mtemporal |e[0m /home/builder/temporal/temporal/fx.go:1013:
e[36mtemporal |e[0m failed to build log.Logger:
e[36mtemporal |e[0m received non-nil error from function "go.temporal.io/server/temporal".ServerOptionsProvider
e[36mtemporal |e[0m /home/builder/temporal/temporal/fx.go:159:
e[36mtemporal |e[0m sql schema version compatibility check failed: version mismatch for keyspace/database: "temporal". Expected version: 1.9 cannot be greater than Actual version: 1.7
e[36mtemporal |e[0m Unable to create server. Error: could not build arguments for function "go.uber.org/fx".(*App).constructCustomLogger.func2 (/go/pkg/mod/go.uber.org/fx@v1.18.2/app.go:414): failed to build fxevent.Logger: could not build arguments for function "go.temporal.io/server/temporal".glob..func8 (/home/builder/temporal/temporal/fx.go:1013): failed to build log.Logger: received non-nil error from function "go.temporal.io/server/temporal".ServerOptionsProvider (/home/builder/temporal/temporal/fx.go:159): sql schema version compatibility check failed: version mismatch for keyspace/database: "temporal". Expected version: 1.9 cannot be greater than Actual version: 1.7.
e[36mtemporal exited with code 1
